Proximity Touch Sensors & GPIO Adapters |
||
| Proximity Touch Sensor (Vertical Entry) AZ-Sense2-V $10.50 |
2x2 inch Proximity 'Touch Sensor'. Easily activated thru
plastic, glass, wood, MDF or combination. This sensor has 'Dynamic
Calibration' that sets the proximity sensitivity on power-up. Requires
'polarized' RJ11-6-4 phone cable and connections.
Note: Custom touch settings available. Contact HMS Technical Support for custom gain settings. Link: Specification Sheet |
 Click Image for larger image |
| Proximity Touch Sensor (Horizontal Entry) AZ-Sense2-H $10.50 |
2x2 inch Proximity 'Touch Sensor'. Easily activated thru
plastic, glass, wood, MDF or combination. This sensor has 'Dynamic
Calibration' that sets the proximity sensitivity on power-up. Requires
'polarized' RJ11-6-4 phone cable and connections.
Note: Custom touch settings available. Contact HMS Technical Support for custom gain settings. Link: Specification Sheet |
 Click Image for larger image |
| Proximity Touch Sensor (Vertical Entry) AZ-Sense2-V-TH $20.50 |
2x2 inch Proximity 'Touch & Hold Sensor'. Contact
'Technical Support' for sensor programming. Requires 'polarized' RJ11-6-4
phone cable and connections.
Note: Custom touch settings available. Contact HMS Technical Support for custom gain settings. Link: Specification Sheet |
Click Image for larger image |
| Proximity Touch Sensor (Horizontal Entry) AZ-Sense2-H-TH $20.50 |
2x2 inch Proximity 'Touch & Hold Sensor'. Contact
'Technical Support' for sensor programming. Requires 'polarized' RJ11-6-4
phone cable and connections.
Note: Custom touch settings available. Contact HMS Technical Support for custom gain settings. Link: Specification Sheet |
Click Image for larger image |
Small, low profile
Proximity Touch Sensor (Small) |

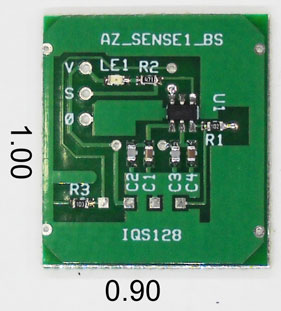

1.0 x 0.9 inch Proximity 'Touch Sensor'. Easily
activated thru plastic, glass, wood, MDF or combination. This sensor has
'Dynamic Calibration' that sets the proximity sensitivity on power-up. 3
wire connection (phone cable works)
Note: Custom touch settings available. Contact HMS Technical Support for custom gain settings. Or for pre-wiring of the phone cables to the sensor board. Link: Specification Sheet |
|
| Proximity Touch Sensor GPIO adapter (Series 3) TB12-RJ11-4 $24.50 |
GPIO (Series 3 & 4 Machines) to RJ11-4-8 adapter
specifically for the Proximity Touch Sensors above. Can mount directly to
the BrightSign GPIO. Attach to the GPIO using the pluggable terminal blocks
are used with the 'Series 3 & 4' machines.
Link: Specification Sheet |
 Click Image for larger image |

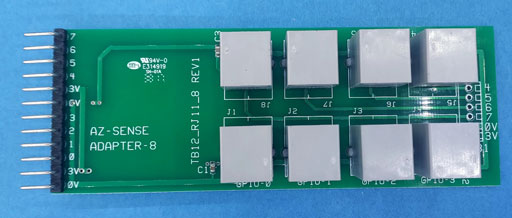

| Proximity Touch Sensor GPIO adapter (Series 3) TB12-RJ11-8 $28.50 |
GPIO (Series 3 & 4 Machines) to RJ11-4-8 adapter
specifically for the Proximity Touch Sensors above. Can mount directly to
the BrightSign GPIO. Attach to the Phoenix GPIO pluggable terminal block
that come with the 'Series 3 & 4' machines.
Link: Specification Sheet |
Click Image for larger image |
|
AZ Sense TB10-RJ11-8 to Touch Sensor Adapter |
Phone Cable Adapter to simplify wiring. Up to 8 AZ-Sense
boards can be connected using the RJ11-6-4 telephone cables. Use a 10
conductor cable between this board and any HMS I/O board
that has 3.3 volts on the 'input' terminal block. Note: For Sensors with LED's, the LED's lines are connected to 0Volts (always on). |
|
| Link: RJ11 Cables | 4 Conductor Phone Cables for the above modules | |
Ambient Light Sensors |
||
| LDR-Sensor (New Item 11/2020)\ |
1" x 1" Light Sensor. Shipped with socket pins for the
sensor (Light Dependent Resistor). Cut the leads of the LDR to required
length (scissors or wire cutters). The output is high with ambient light
and goes low when covered (dark). The board size is 1.0 x 1.0 inches with 4
mounting holes in the corners. This sensor is intended to be mounted under
a shelf and the LDR cut to fit flush to the top of the shelf. Not
restricted to under shelf mounting. Options: -N (no cable, no socket),
Options: -PW (Pre-Wired with 24" cable) Options: -S (3 pin socket) Link: Specification Sheet |
 Shown
with 3 pin socket. However, contact HMS Electronics (Technical Support) if
you want the board pre-wired or socket installed. |
| LDR-Sensor-L (New Item 11/2020) |
1" x 1" Light Sensor. Shipped with socket pins for the
sensor (Light Dependent Resistor). Cut the leads of the LDR to required
length (scissors or wire cutters). The output is low with ambient light and
goes high when covered (dark). The board size is 1.0 x 1.0 inches with 4
mounting holes in the corners. This sensor is intended to be mounted under
a shelf and the LDR cut to fit flush to the top of the shelf. Not
restricted to under shelf mounting. Options: -N (no cable, no socket),
Options: -PW (Pre-Wired with 24" cable) Options: -S (3 pin socket) Link: Specification Sheet |
|
