USB RGB LIGHT DRIVERS |
||
Product |
Description |
|
|

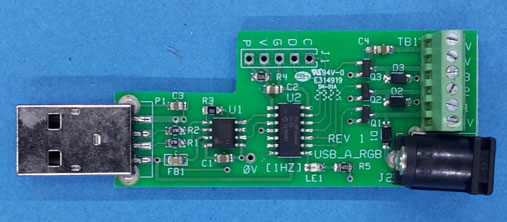

USB-A-RGB (1 set RGB Light Drivers for 3 outputs) Price Each: $19.00 (USD) |
Plug directly into the USB port (no cable required) |
|
|

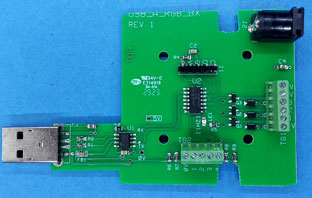

USB-A-RGB-BX-PCB Price Each: $21.00 (USD) |
Plugs directly into the USB port (no cable required) has a 4 I/O terminal block for additional Inputs or Outputs or for remote trigger of scenes. Same function as the above board but layed out for the enclosure shown below. |
|
|

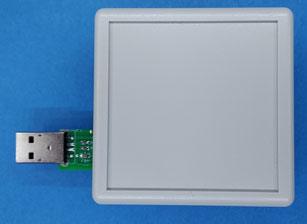

1593B-BOX Price Each $5.00 |
Enclosure for the above PCB 2.6 x 2.6 x 1.00 inches |
 |
|

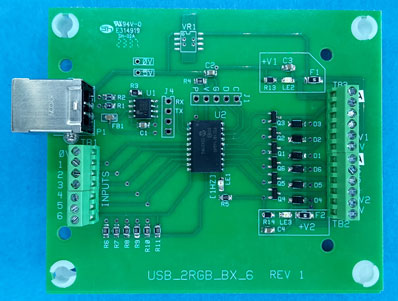

USB-2RGB 2 Sets RGB Drivers Price Each $30.00 |
Two sets of RGB outputs with branch circuit Protection (Fuses). Fused power supply connections for single high capacity power supplies. Links: Data Sheet Schematic |
 |
|
1593BB-BOX Price Each $9.00 (USD) |

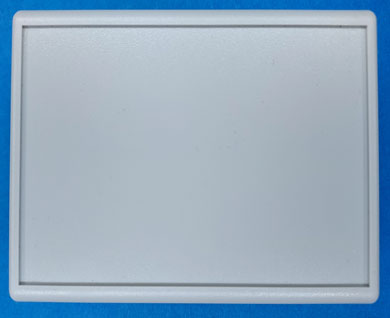

Enclosure for USB-2RGB 3.75 x 3.00 x 1.00 inches |
 |
|

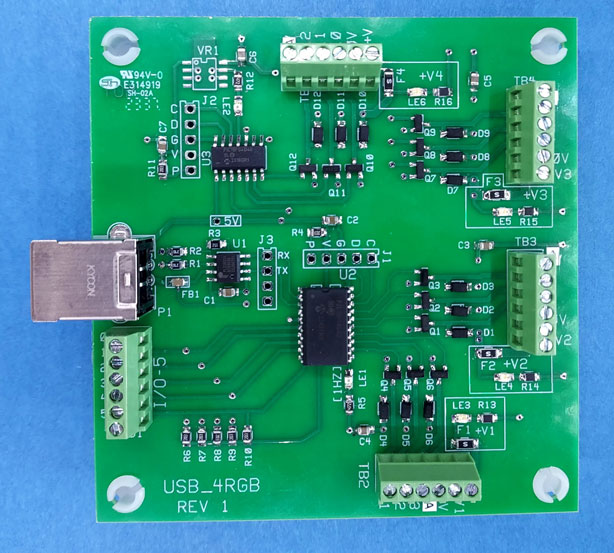

USB-4RGB 4 Sets of RGB Drivers Price: $42.00 (USD) |
Four sets of RGB outputs with branch circuit Protection (Fuses). Fused power supply connections for high capacity power supply. Links: Data Sheet Schematic |
 |
|
Price: 75.00 (USD) |
10 AMP RGB DRIVERS (3 OUTPUTS) 30 AMPS MAXIMUM USB or Remote Trigger (or use the GPIO to trigger scenes) Links: Specification Sheet Schematic (Typical Connections) |
|
|

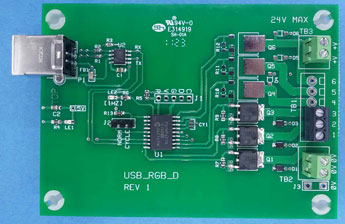

USB-RGB-D Dual Set of High Current RGB Drivers (no Branch Circuit
Protection) Price: 95.00 (USD) | 10 AMP RGB DRIVERS (6 OUTPUTS) 50 AMPS MAXIMUM USB or Remote Trigger Scenes (or use the GPIO to trigger scenes) Links: Specification Sheet Schematic (Typical Connections) |
 |
Low Cost RGB 'STAND ALONE' PRODUCTS (NO USB PARTS) |
||
|

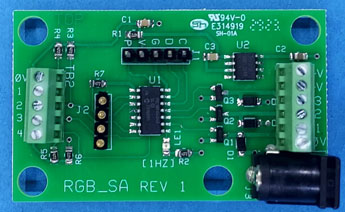

RGB-SA Call for quote (100 pcs minimum) |
Controlled by the BrightSign GPIO Port. 4 Inputs for scene selection.
No USB Parts
Links: Data Sheet Schematic |
|
|
RGB-BX-SA Call for quote (100 pcs minimum) |
Same as above but compatible with the box below! |
|
|
RGB-BX-SA-EN Call for quote (100 pcs minimum) |
The enclosure for the above PCB.
|
|

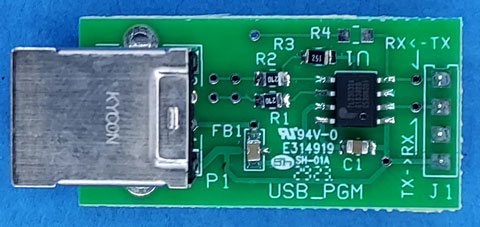

USB-PGM (Programming Adapter) |
Use this board to program 'Stand Alone' RGB boards. Plugs into the 4 pin header of the 'SA' boards. |
|
|

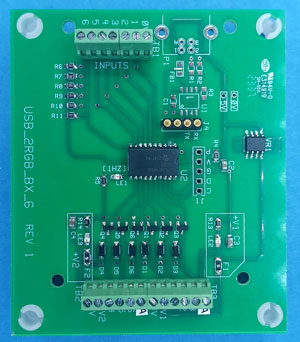

USB-2RGB-SA Call for quote (50 pcs minimum order) |
Same as USB-2RGB but with the USB components removed to reduce cost.
Select scenes using the 5 input terminal block. Links: Data Sheet Schematic |
 |
|
USB-4RGB-SA Call for quote (50 pcs minimum order) |
Same as USB-4RGB but with the USB components removed to reduce cost.
Select scenes using the 6 input terminal block Links: Data Sheet Schematic |
|
RGB TEST FIXTURES |
||
|
DT-IO-4 (4 BUTTON TEST FIXTURE) Price: $8 (USD) |
Developer Tool for boards with 4 pin I/O terminal blocks. It has 4 switches for momentary inputs, 4 jumpers for constant inputs, 4 LED's to show state of outputs (if outputs are enabled) |
 |
|

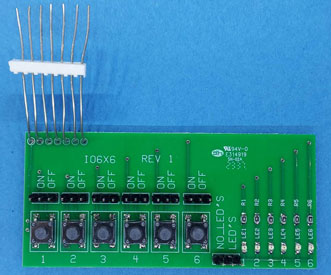

DT-IO-6 (6 Button Test Fixture) Price: $9.00 (USD) | Developer Tool for boards with 5 or 6 pin I/O terminal blocks. It has 6 switches for momentary inputs, 6 jumpers for constant inputs, 6 LED's to show state of outputs (if outputs are enabled) |
 |
| RGB-LED-TF (In Progress) | LED TEST FIXTURE FOR RGB BOARDS! | PICTURE COMING MID December |
Please inquire if you have a custom requirement for interfacing! Turn around can be a little as two weeks.
| Note: External Power Supply Connections: USB-2RGB AND USB-4RGB have built in fuses. It is imperative that the power supply be connected to each 0V and +Vx for each set of Drivers. Connecting the power supply and the +V of the RGB lights to the +V or each driver set can result in failure of the board and also presents a fire hazzard! Using the 'fused inputs' for each driver set protects the board for high current power supplies! |
