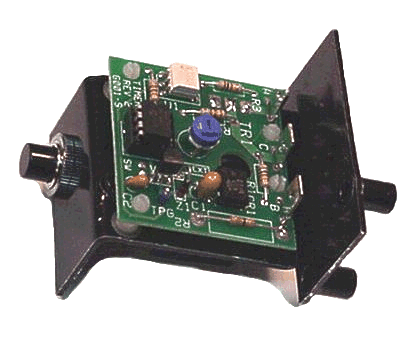

G001 is a digital timer with a 25 amp triac output switch .  This is a complete assembly with the exact 'foot print' of the original Timer.  Timing range is 15 to 60 seconds.  For special applications, I.E. therapy simulators, the time may be doubled by soldering a jumper wire in the location marked 'X' on the board.

The triac output has longer life expectancy than relay types.  The triac design utilizes a zero crossing circuit which eliminates EMI/RFI noise.

NOTE:  The triac has a 1.6 volt drop and therefore reduces the lamp voltage by the 1.6 volts.  It is up to the installer to ensure that the lamp intensity meets the manufactures specifications.
