PLC (Programmable Logic Controller)

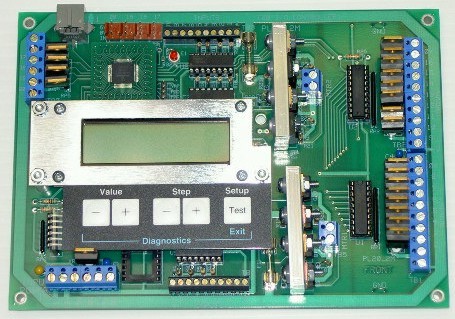

20 input/20 output Programmable Logic controller.

Features:

• 12/24 Volts DC input
• On board display 2x16 LCD display plus 5 button keypad
• On board 5 volt regulator.
• Asynchronous serial port (TTL level only)
• Direct drive of loads (no on board relays)
• Note: Standard 3 amp drivers or optional 10 amp drivers
• Dual on board bi-directional motor drivers
• Note: Standard 3 amp drivers or optional 10 amp drivers

Optional Asynchronous Serial Controlled Modules (TTL level only)

• 4 Triac Driver (suitable for dimming control)
• 8 Triac Driver (suitable for dimming control)
• Dual Bi-directional motor driver
• Quad Bi directional motor driver
• 8 relay (10amp 240VAC) relay board.
• 16 relay (10 amp 240VAC) relay board.

Technical:

This board is based on the Microchip PIC18F6527 microcontroller.  The user has to have knowledge and no how for programming the chip.   Board size is 7.6 x 5.4 inches.
