BrightSign Developer Tools
|
| Product |
Description |
Image (Click on image for larger image) |

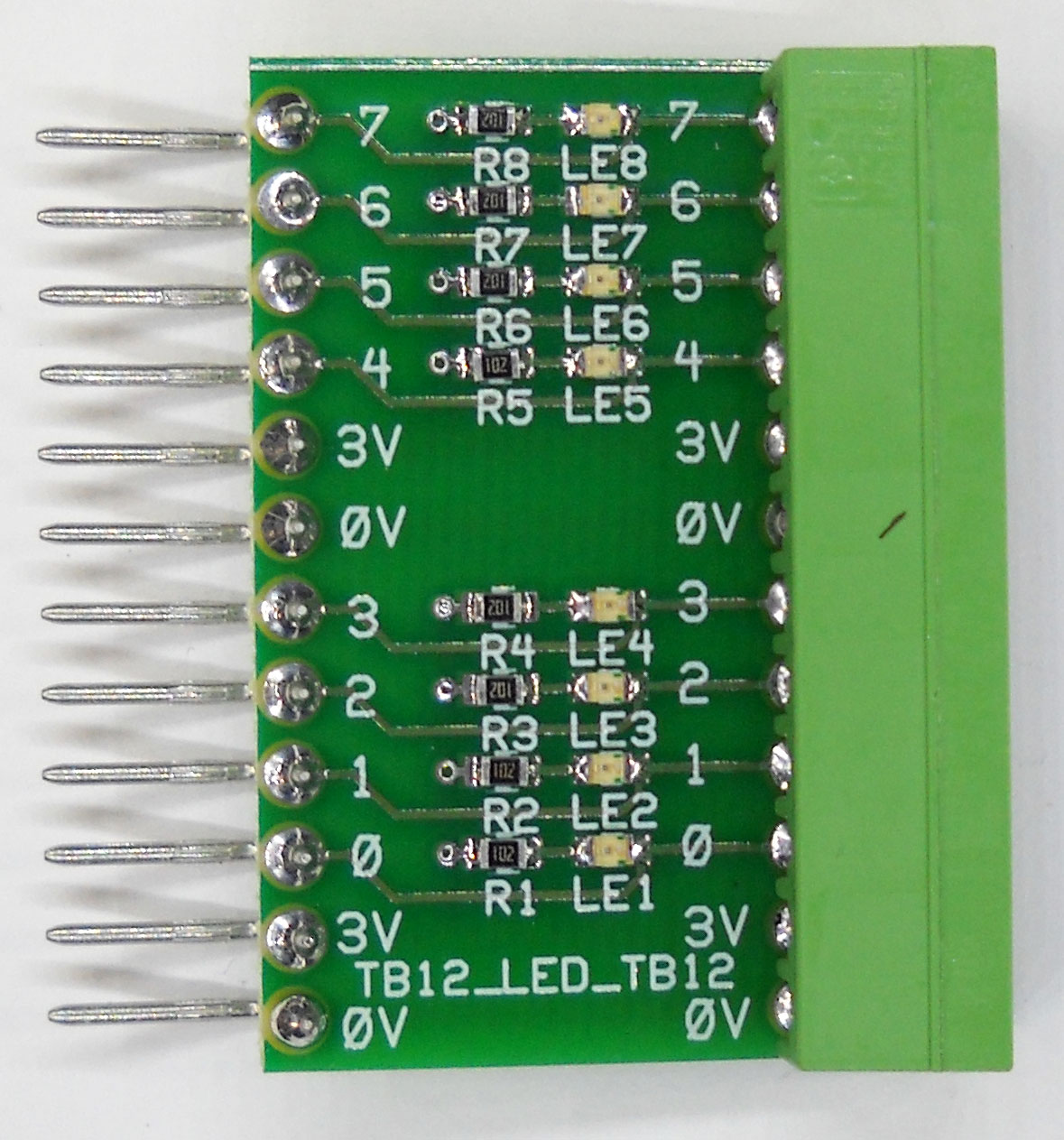

| TB12-LED-TB12 (LED Tool) (use with Phoenix Connector
models)
Price Each: $15.00 (USD)
|
This LED 'GPIO Monitor' provides the developer with a quick
and easy 'visual' way to verify programming or connections. Connect this
board to the BrightSign using the Phoenix terminal block for the BrightSign. You will have a visual on the GPIO. |
|

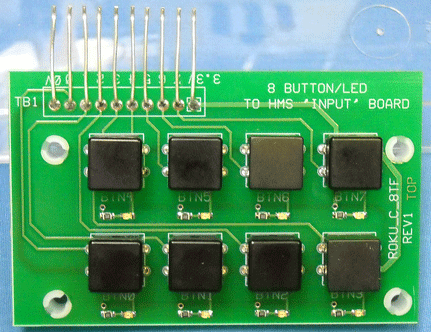

| HMS-8Button-8LED 'Button Board'
Use with all BS-C-xxx 'HMS' interface boards
Price Each $45 (USD)
|
8 Input Switches go directly to the BrightSign I/O port via
the HMS interface board. Each Button activation pulls the BrightSign input
low. I.E. Press Btn0 to pull the input 'Btn0' low to the Brightsign
(event=btn0). An LED is connected to each 'Btn' so that programming or
pressing a button can be viewed to assist in developing 'Play Files',
'AutoPlay Files' or 'Script Files'.
|
|
| |
