BrightSign Audio Accessories |
||
Item |
Description |
Click Pictures for Larger Image |
|

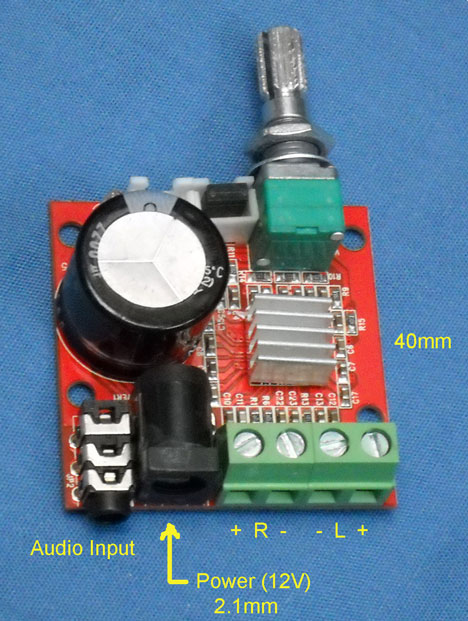

10W x 10W (Stereo Amplifier)
Price Each: $21.00 (USD) |
Amazingly small Powerful amplifier.
Class D, 10 watt Stereo amplifier (10 watts each channel). 12 volts. 8 ohm speakers. Audio Input is 3.5mm (1/8"). Power Input 12 volts 2 amps (center = positive). |
 |
|
Price Each: $4.00 (USD) |
.9m (36 inch) Stereo Cable (BrightSign to 10W Stereo Amplifier). Link: Typical Power Connections (future, please inquire) |
 |

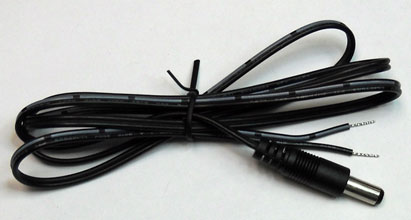

| 2.1mm Power Cable (Jack on one end) (cables listed below) | 2.1mm DC Power Connector w/cable for connection from any HMS board with V+ and 0V on the terminal block. Use to 'jumper' 12 volts to the amplifier. Be sure to use a 12Volt 3ampere power supply for both Audio and I/O boards. |
 |
|
PC-2.1-36 (2.1mm Power Cable) Price Each: $3.00 (USD) |
36" Power Cable w/2.1mm Jacks |
 |
|
PS-12V-3A-TB (12V, 3Amp, Power Supply) for terminal block Price Each: $44.50 |
Power Supply for both HMS I/O board and Stereo Amplifier
(shown above) 12Volt 3.0 amp regulated 'Table Top' power supply for loads (lamps, relays, motors, etc.) Note: (wires tinned and color coded) (Red = +Volts). AC cord provided. |
 Click on image for larger image |
PS-12V-3A (12V, 3Amp,Power Supply) Price Each: $42.50 |
Power Supply for both HMS I/O board and Stereo Amplifier
(shown above)
12Volt 3.0 amp regulated 'Wall Mount' power supply for loads (lamps, relays, motors, etc.) Note: With 2.1mm plug for connection to I/O boards with 2.1mm Jack. Includes Terminal Block Adapter. |
Click on image for larger image |
|

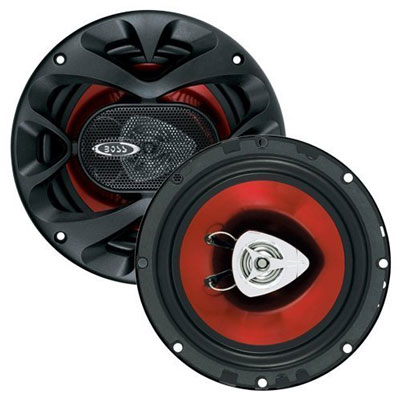

CH6520 (BOSS Speaker Set) Price Each: $28.60 USD |
6-1/2 inch, 8 Ohm speaker suitable for the 10 watt amplifier shown above Includes 6 feet wire for each speaker. Very suitable for kiosk use. Weight: ~ 4 lbs. |
 |
Revised: 08/27/2024
