Vandal Resistant Switches (Lighted, 12 Volts) |
||
VRS25-F12 (Momentary Switch, Lighted) Price Each: $15.00 (USD) |
25mm (1 inch) stainless body, flat actuator, 12 volt, ring
lighting, momentary switch. Overall length below mounting = 40mm (plate
bezel to terminals) Panel Thickness 1 to 10mm |
  |

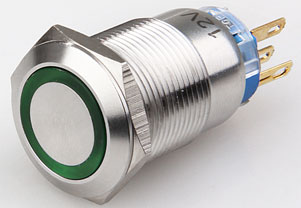

VRS19-F12 (Momentary Switch, Lighted) Price Each: $12.00 (USD) |
19mm (3/4 inch), stainless body, flat actuator, 12 volt,
ring lighting, momentary switch
Panel Thickness 1 to 12mm |
 |
Vandal Resistant Switches (Lighted, 3 Volts) |
||
VRS25-F-3V (Momentary Switch, Lighted, 3Volts) Price Each: $15.50 (USD) |
These are custom switches for direct connection to the
BrightSign GPIO. The BrightSign has limit resistors built in, so these
switches have no limit resistors. These can only be used for the
BrightSign GPIO (unless you add external limit resistor) Use the
DB15-TB10-3V adapter for connections to the Older BrightSign GPIO. 25mm (1 inch) , stainless body, flat actuator, 3.3 volt, ring lighting, momentary switch Panel Thickness 1 to 10mm |
|
VRS19-F-3V (Momentary Switch, Lighted, 3Volts) Price Each: $12.50 (USD) |
These are custom switches for direct connection to the
BrightSign GPIO. The BrightSign has limit resistors built in, so these
switches have no limit resistors. These can only be used for the
BrightSign GPIO (unless you add external limit resistor) Use the
DB15-TB10-3V adapter for connections to the BrightSign GPIO. 19mm (3/4 inch) , stainless body, flat actuator, 3.3 volt, ring lighting, momentary switch Panel Thickness 1 to 12mm |
|
Vandal Resistant Switches (Non Lighted) |
||
VRS19-F (Momentary Switch, Flat) Price Each: $6.50 (USD) |
19mm (3/4 inch), stainless body, flat actuator
(NON-LIGHTED), momentary switch
Panel Thickness 1 to 10mm |
_40.jpg) |
VRS19-D (Momentary Switch, Domed) Price Each: $6.50 (USD) |
19mm (3/4 inch), stainless body, domed actuator
(NON-LIGHTED), momentary switch
Panel Thickness 1 to 10mm |
_40.jpg)
|

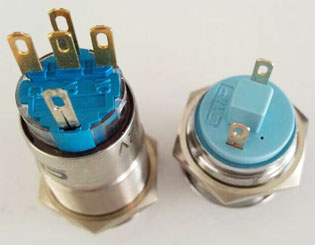

Terminal View of the above switches |
||
| VRS25-D (Momentary Switch Domed) Price Each: $9.50 (USD) |
25mm (1 inch), stainless body, domed actuator (NON-LIGHTED),
momentary switch
Panel Thickness 1 to 10mm |
Shown with pin connections (N/O Switch) |
| Pre-wiring available (call for quote) (specify length for each switch) | ||
ARCADE STYLE LIGHTED BUTTONS (SWITCHES) |
||
HC-SR (Momentary Switch, Flat, 12V) Lens Colors: Blue,Green,Red,White Price Each: $6.50 (USD) |
25mm (1,0 inch), stainless body, flat actuator, LIGHTED),
momentary switch. High Reliability micro switch. 1.0" hole size. Twist &
Lock Assembly.
Panel Thickness 1 to 20mm |
 White Lens shown |
HC-SR-LAMP (12V replacement lamp) Led Colors: Red,White Non-Stocked: Blue,Green Price Each: $2.00 (USD) |
LED replacement lamp for the 'HC' above |
|
